Collection: Industrial Spec

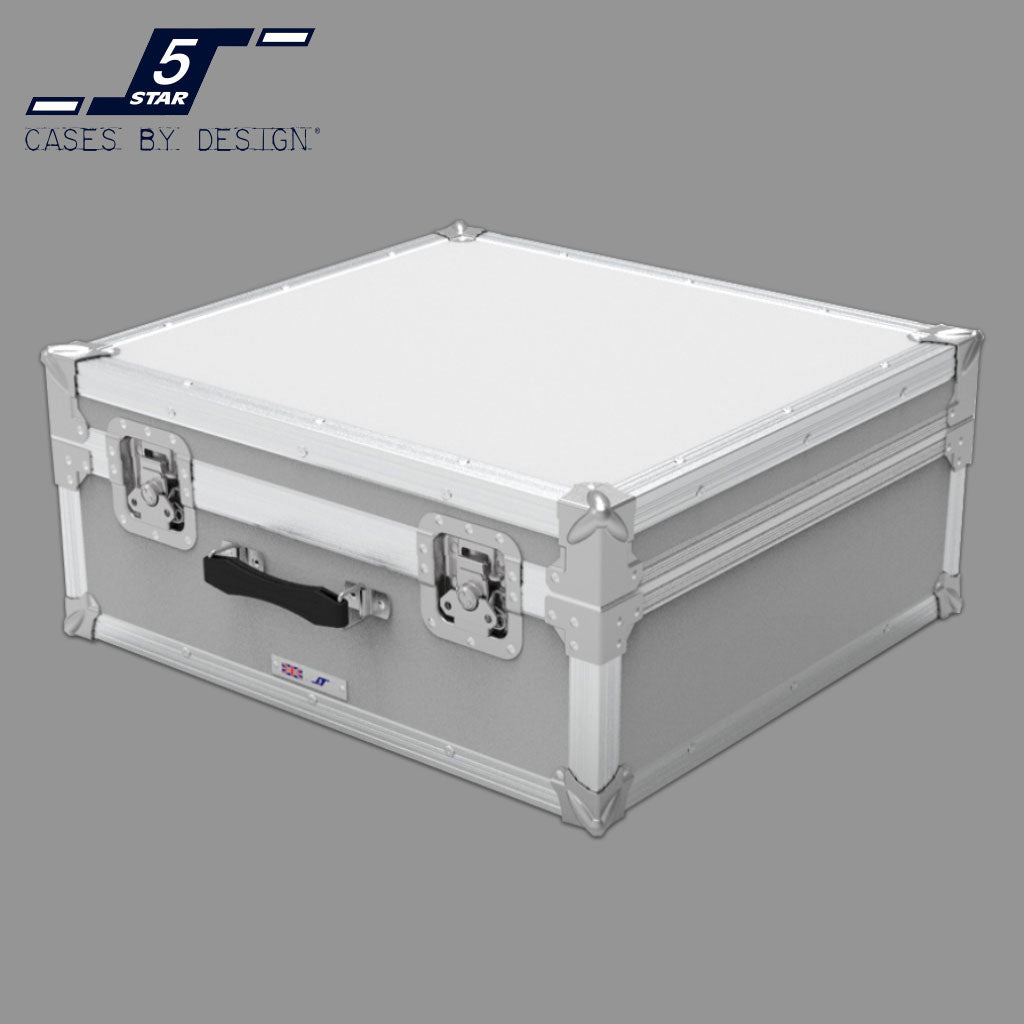

The Industrial flight case range from 5 Star Cases is the ideal solution for professional users, regularly moving and storing small to medium sized items, or intermittently moving larger ones. The Industrial range finds uses in many applications including Medical, Telecommunications, Military, Offshore, Exhibition and Audio Visual. Custom built flight case interiors fit your product like a glove, providing total protection and security in transit. With high quality core construction from only the finest materials, the Industrial flight case is the perfect choice for all of your storage or transport needs.
There are three variants of the Industrial specification available. This has been done to bridge the gap between Lite-Flite and the heavier Tour Grade specifications.
Light Industrial offers a durable approach while not compromising on weight, as the carcass is from 6mm plywood. 30mm aluminium extrusion is groove riveted to leading edges while medium knuckle corners are fitted. On certain dimensions of lid, combined corners and braces are utilised.
Heavy Industrial specification cases comprise a 9mm ply carcass while external protection is provided by large ball corners. Large butterfly catches are used (where applicable) however, the extrusions are the same throughout the Industrial range.
Main Features
- Glued and pinned joints for added strength and stability
- CNC machined for accuracy
- High grade laminates (HPL) produced and tested to BS3794.
- Wide choice of colours and finishes
- 30mm aluminium angle protects all leading edges
- Most handles, catches and lids stays – recessed for durability
- Castors, where required, – fitted with running boards and concealed ‘T’ nuts
- 100mm diameter castors with safe weight loading of over 600kg. fitted as standard
- Custom case interiors
- Polyethylene and Polyurethane foam interiors for maximum protection
Light Industrial
- 6mm ply carcass construction
- Medium knuckle corners
- Small butterfly catches (where applicable)
Industrial
- 9mm ply carcass construction
- Medium knuckle corners
- Small butterfly catches (where applicable)
Heavy Industrial
- 9mm ply carcass construction
- Heavy Ball corners
- Large butterfly catches (where applicable)
- 90mm Internal Lid (where applicable)
Options
- Weatherproof sealant and sealed rivets, ideally suited to the Offshore Industry
- Anodised Aluminium Extrusions and powder-coated hardware
- Stucco aluminium and a wide choice of tear resistant extruded vinyl finishes
